LIDM - Credential Manager

Powered by

DS2 IDM IceLogo

Project Links
Software GitHub Repository https://github.com/ds2-eu/credentialmanager
Progress GitHub Project https://github.com/orgs/ds2-eu/projects/8

General Description

The DS2 Credential Manager is a connector-edge module that provides a lightweight, operator-friendly control plane for managing Verifiable Credentials (VCs), Decentralized Identifiers (DIDs) and Verifiable Credential Definitions on a per-connector basis. It is designed to run alongside an Eclipse Dataspace Connector (EDC), acting as a local management surface for IdentityHub participants, credential issuance definitions, the generic object puller, and the synchronization of repository objects into the wallet.

The module ships as part of the DS2 Identity Manager (IDM) foundation stack. It is now decoupled as a standalone DS2 module so that connector operators can deploy a single, tightly-scoped service next to their EDC that owns all credential and participant concerns without depending on a global portal. The Credential Manager keeps the wallet, the issuer, and the puller in one place and exposes them as a self-contained REST API plus dashboard.

Key capabilities include:

  • IdentityHub Participant Management — create, register, publish and inspect connector participants and their DIDs directly against the EDC IdentityHub.
  • Verifiable Credential Lifecycle — list, inspect, store, delete and revoke VCs that live in the connector's IdentityHub wallet.
  • Issuer Orchestration — coordinate the EDC IssuerService Admin API (credential definitions, attestations) and the global IDM signing endpoint, including fully-decentralized did:key self-issuance.
  • Generic Object Puller — automated, route-based ingestion of repository objects (credentials, dataspace agreements, packages) into the IdentityHub, a local repository, or an external webhook. Includes scheduled jobs and on-demand execution.
  • Downloadable Credentials Flow — review pending agreements and deliverables assigned to the connector in the global DS2 Repository, accept them and watch them flow into the wallet. A local repository mirrors delivered objects for offline/audit use.
  • Requestable Credentials (peer credentials) — when enabled, surface DS2 dataspace peer credentials (membership, agreement, acquisition) via the same flows exposed by the IDM portal.
  • Local Dashboard UI — a modern web interface served by the same process provides visual access to everything above (wallet, expiration monitor, puller admin, issuer configuration, DID documents, policies).

The module aligns with W3C Verifiable Credentials Data Model 1.0/1.1, supports VC1_0_JWT and VC1_0_LD formats, and is fully containerised (Docker image + Helm chart for the DS2 Containerisation stack).

Architecture

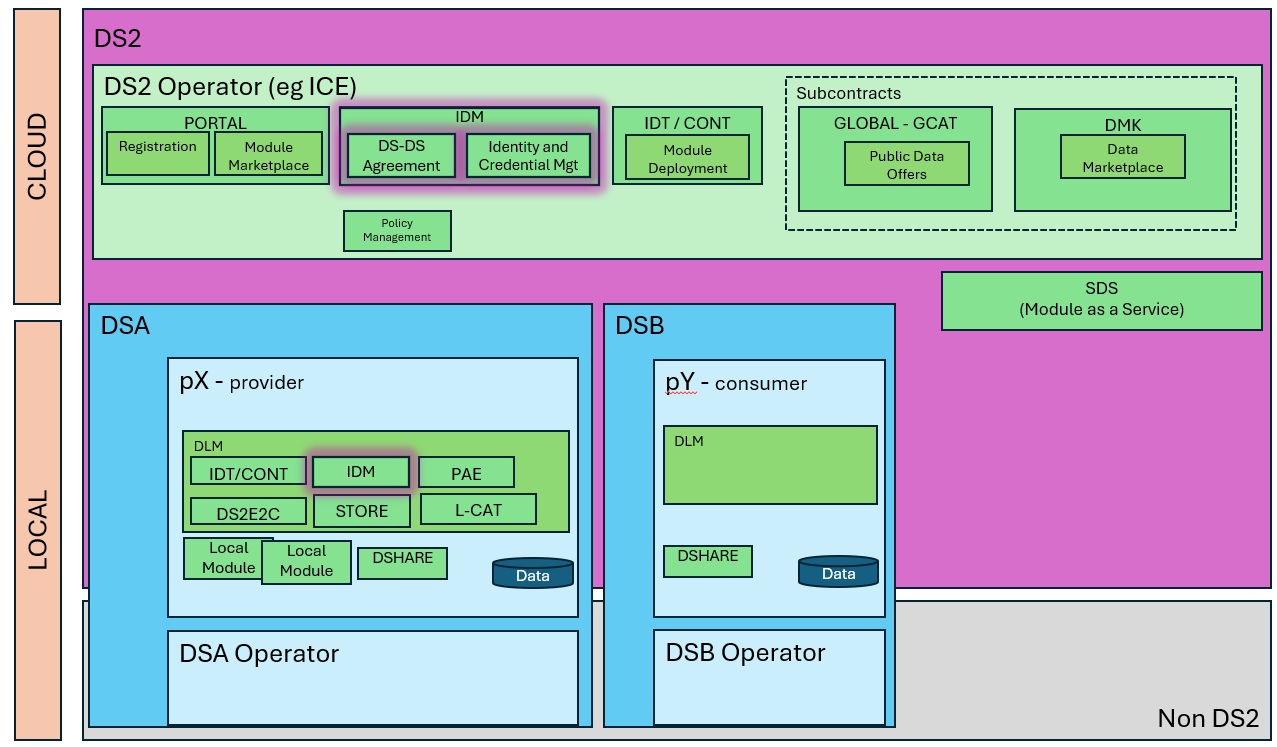

The figure below represents the module fit into the DS-DS environment. Credential Manager Architecture fits

The figure below represents the actors, internal structure, primary sub-components, primary DS2 module interfaces, and primary other interfaces of the module. Credential Manager Architecture

Component Definition

The Credential Manager is a single Node.js/Express HTTP service exposed on port 3001. It is composed of the following internal sub-components:

  • HTTP API: Express application that owns the entire REST surface. It implements signing for self-issued credentials, JWT helpers, dynamic URL resolution (from JWT-extracted organizationUrl), and ties together all sub-components.
    • Integrates with the EDC IdentityHub Identity API (/v1alpha/participants/...), the IdentityHub Credentials API, and the optional IssuerService Admin API.
    • Connects to the global DS2 Repository API and to an optional local Repository mirror (for IDTA deliveries).
    • Falls back to the global IDM signing endpoint (/idm-api/credentials/sign and /sign-custom) for synchronous credential signing when IDM_ENABLED=true.
    • Exposes Endpoints for Config, Issuers, Participants & DIDs, Credentials (CRUD + request + revoke + sign), Credential Types, Repositories (proxy + agreements), Policies, Puller (config, routes, logs, run), and IDM (proxy for organizations, dataspaces, collaborations, credentials).
  • Frontend (public/): Vanilla JavaScript + HTML/CSS dashboard served by the same process on /. Panes include: Accepted Credentials (wallet with stack-of-cards look), Expiration Monitor, Credential Definition builder, Request from Issuer (EDC DCP or IDM endpoint), Self-Sign (IDM custom preset or local did:key), Downloadable Credentials (PENDING/DELIVERED), Requestable Credentials (optional), Puller admin (routes, schedules, logs) and a Participant DID modal.
  • Generic Object Puller (src/object-puller/): Route-based scheduler that periodically queries the configured Repository API for objects matching filter criteria (objectType, objectTypeContains, name, status, or free-form metadata) and dispatches them to a handler. Handlers included out of the box:
    • identityHub.storeCredential — pull a credential from repo and store it in the connector's IdentityHub.
    • identityHub.deleteCredential — delete a previously-stored credential from the IdentityHub when its repo object becomes DELETED/REVOKED.
    • localRepository.insert — insert/upsert a repo object into the optional local repository.
    • localRepository.syncStatus — propagate DELETED/REVOKED status changes to the local repository.
    • webhook.post — POST the fetched object data to an external webhook URL configured per object.
    • Routes and schedules are persisted in data/puller-config.json. Per-route schedules support either a fixed time-of-day (e.g. 02:00) or a repeating interval (e.g. every 60 min). Runs are logged to data/pending-sync.log.
  • Multi-tenant Issuer Configuration: File-backed per-connector issuer definitions stored in data/issuers.json. One connector DID can have many issuer entries; one of them may be marked default. Issuers carry: DID, friendly name, IssuerService Admin URL, Admin API Key and Base64 context ID. The credential-definition editor in the dashboard pushes new types to the IssuerService Admin API and recreates matching Passthrough attestations.
  • Credential Type Builder: A local UI/server flow that wraps credential definitions on the IssuerService Admin API. Types fetched from the issuer feed the DCP request flow. Self-issued did:key credentials (VC1_0_JWT, Ed25519) can be generated fully offline using the local jose keystore.
  • IDM Proxy & Requestable Credentials Layer: When IDM_ENABLED=true, the module transparently proxies select IDM endpoints (organizations, dataspaces, collaborations, credentials/list, credentials/find, signer endpoints and a curated allowlist of generation endpoints) so that the same dashboard can offer dataspace peer credential requests without leaving the connector context. Object IDs (organizations, dataspaces) are auto-resolved to Mongo ObjectIds before being relayed upstream.
  • Connectors (external):
    • EDC Connector + IdentityHub — target/host of the wallet and the participant registry.
    • Optional EDC IssuerService — issue Verifiable Credentials via the DCP credentials/request flow.
    • Global DS2 Repository API — discovery and delivery of credentials/agreements/packages.
    • Optional Local Repository API — mirrors delivered credentials for offline use.
    • Optional IDM signing endpoints — fallback issuance when an IssuerService is not deployed.

Screenshots

A static walkthrough of the dashboard is available below.

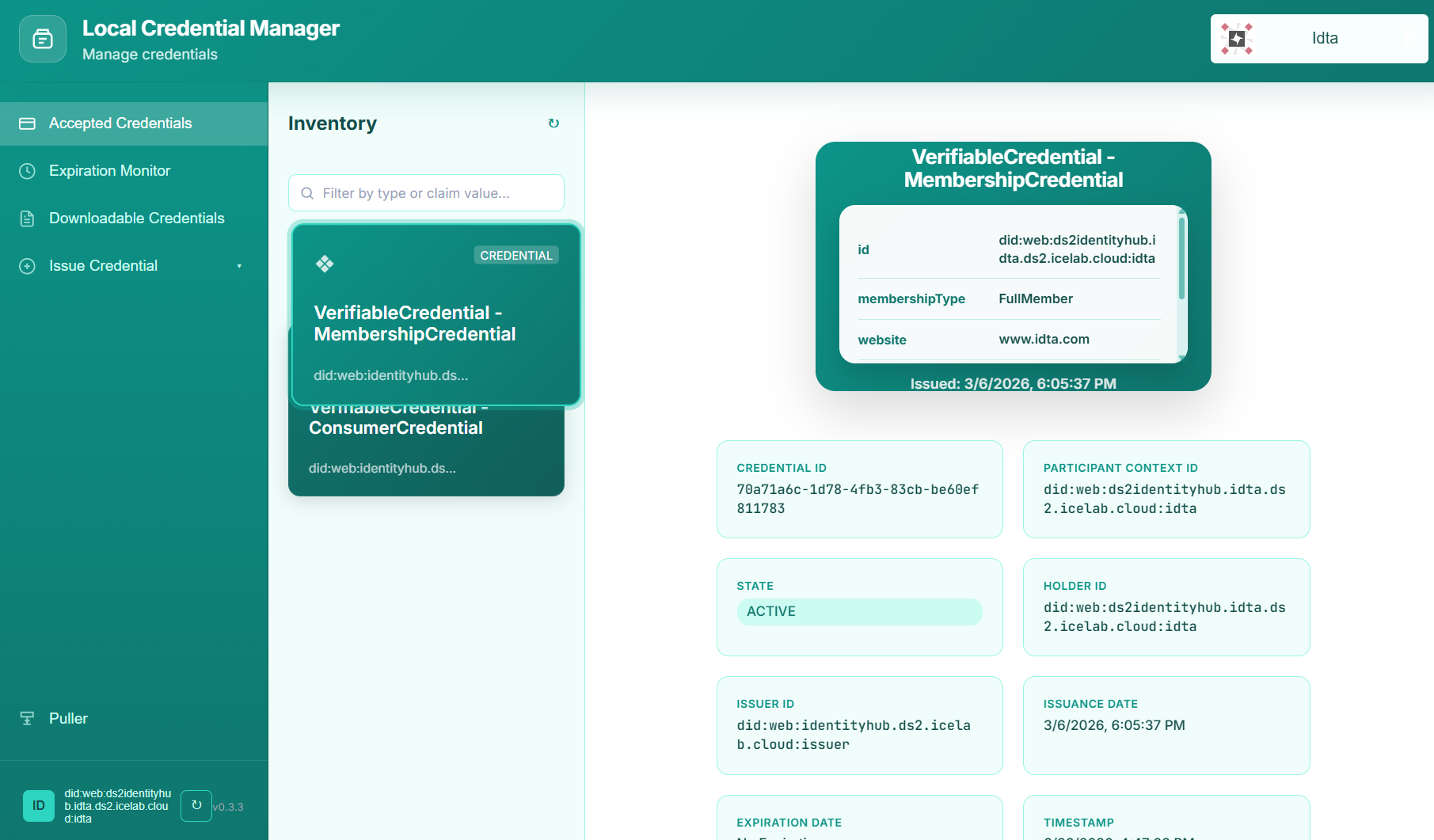

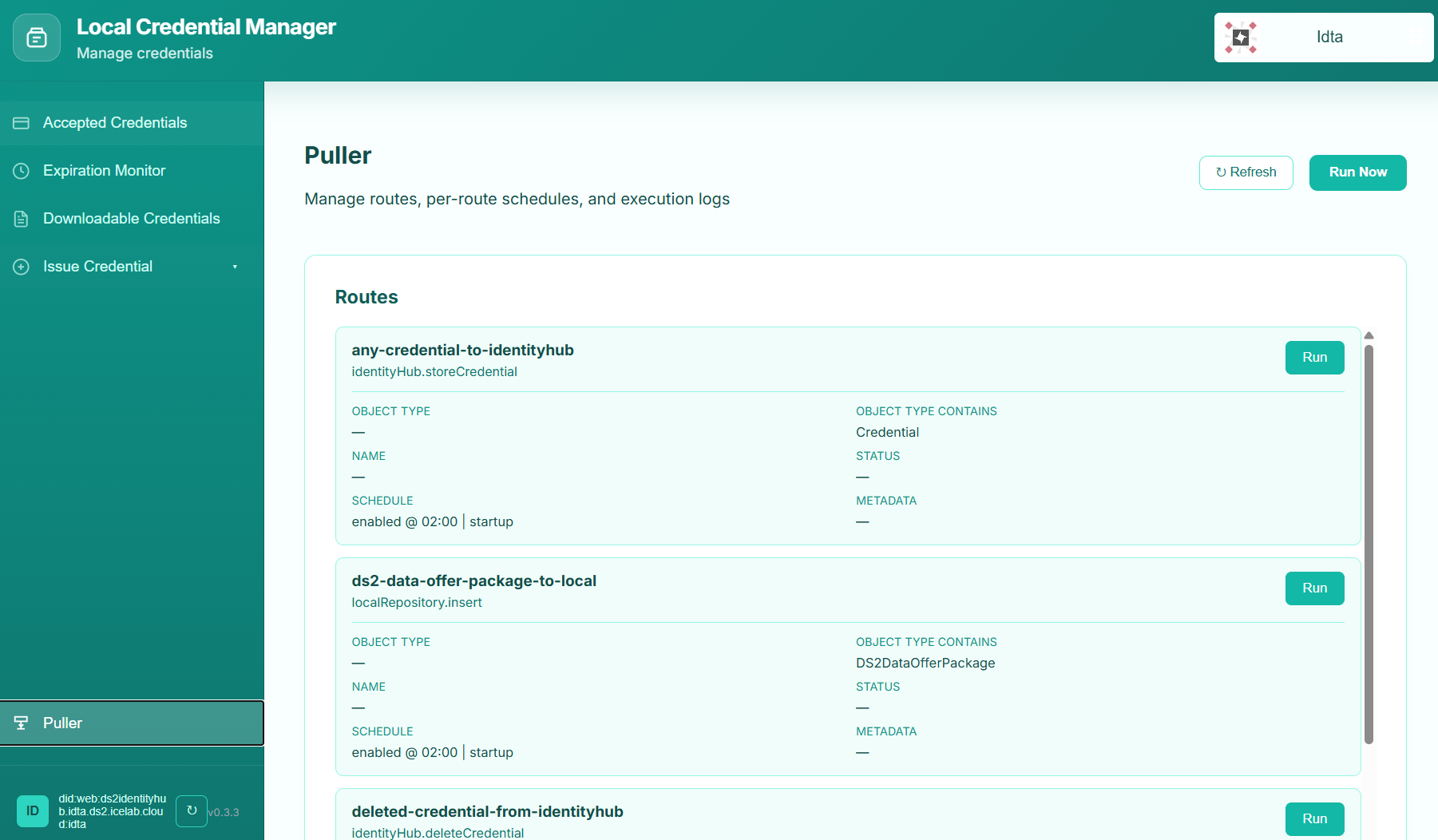

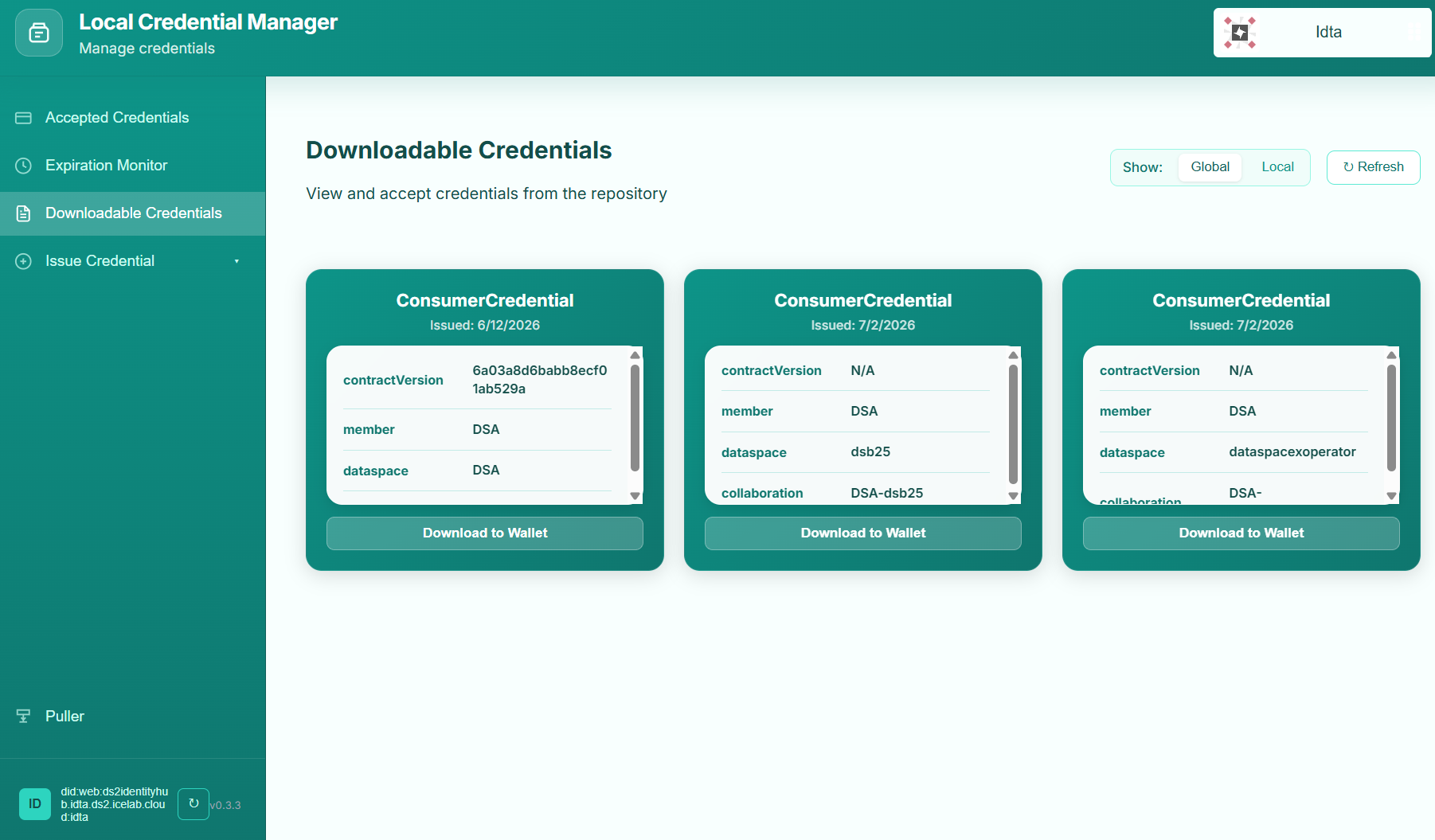

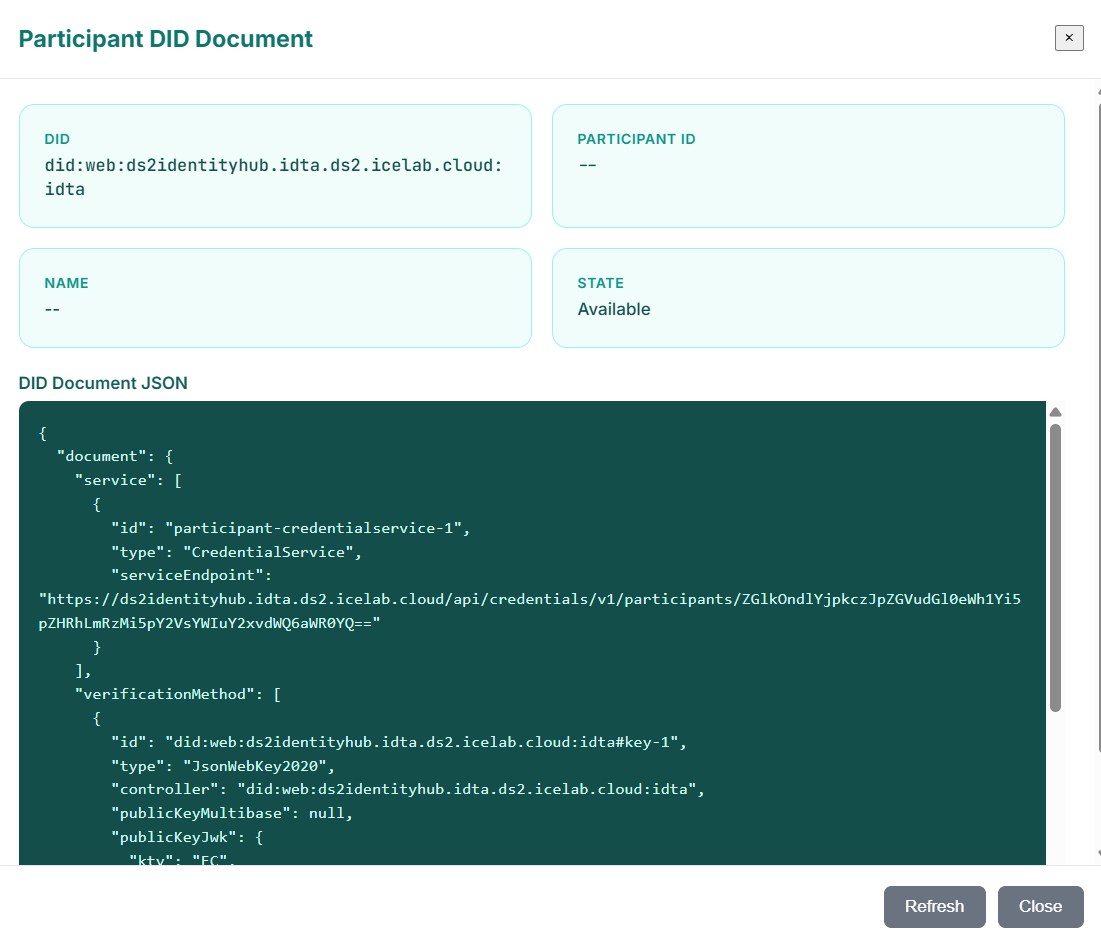

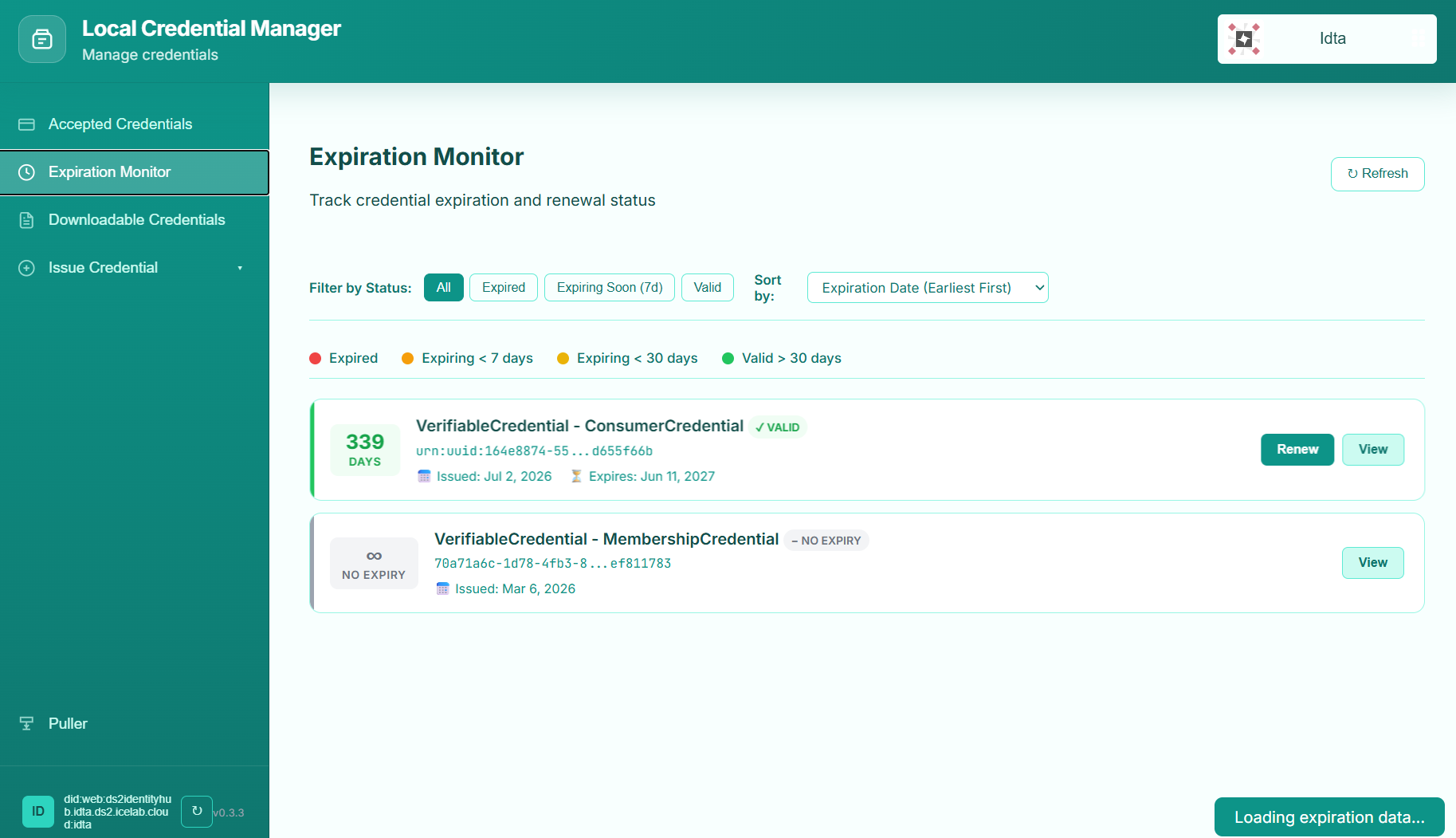

Credential Manager Dashboard

Commercial Information

Organisation (s) License Nature License Marketplace Link
ICE Open Source Apache 2.0 credentialmanager https://marketplacefrontend.central.ds2.icelab.cloud/products/2adb8103-e490-4f5b-abd9-403cf9771d4e

Top Features

  1. Connector-edge wallet (Accepted Credentials pane): stacked-card visualisation with full credential JSON view, issuer, holder, claim subject, status, expiration and policy lookup. Filter and search by claim value or credential type. Credential Manager Wallet
  2. Expiration Monitor: filterable timelines for expired/expiring-soon/valid credentials; sort by expiration date, issuance date or credential type. Credential Manager Credential Expiration
  3. IdentityHub participant lifecycle: create, set active state, publish DID, register service endpoints (CredentialService, optional ProtocolEndpoint) and inspect the resulting DID document directly in the UI. Credential Manager Credential Participant DID
  4. Self-sign did:key credentials: fully offline generation of VC1_0_JWT credentials signed with an ephemeral Ed25519 key pair and stored in the IdentityHub — no external issuer required.
  5. Downloadable Credentials flow: browse PENDING objects from the global DS2 Repository, accept them to trigger automatic delivery into the IdentityHub, and inspect already-DELIVERED items mirrored to the local repository. Credential Manager Credential Downloadable Credentials
  6. Generic Object Puller: configurable routes filter by object type, status, name, or metadata; each route dispatches to one of the bundled handlers on a per-route schedule (fixed time or interval). Routes can be created, edited, deleted and executed on demand from the dashboard. Credential Manager Credential Puller
  7. Puller Logs & Diagnostics: rolling log view persisted to data/pending-sync.log; one-shot Run Now action and per-route Run from the UI for debugging.
  8. Repository status transitions: automatic sync of credentail status between global repository ↔ local repository ↔ IdentityHub (PENDING → DELIVERED → DELETED/REVOKED).
  9. Dynamic URL resolution: participants authenticated via JWT pull organizationUrl from the token to dynamically build IDENTITYHUB_BASE_URL and LOCAL_REPOSITORY_API_URL when those env vars are not set.
  10. Containerised: shipped as a node:20-alpine Docker image (ghcr.io/vicanfon/ds2-ice/credential-manager) with a full Helm chart for the DS2 Containerisation stack.

How To Install

The module can be deployed either as a DS2 market-place module (via the Containerisation stack) or as a standalone Docker container next to an EDC connector. Both routes are supported and described below.

Requirements

Provision a Linux VM (Ubuntu 24.10 or later)

  • Docker installed (for standalone installation)
  • Network connectivity to the EDC IdentityHub, the EDC IssuerService Admin API (optional), the global DS2 Repository API, the optional local repository and the global IDM signing endpoint (optional).
  • For the Containerisation (Helm) installation, the DS2 Containerisation stack already running on a Kubernetes cluster.

Resources: * Recommended: 1 CPU core, 512 MB RAM and 5 GB disk capacity for the Credential Manager service itself (the dashboard is single-page and stateless). Persist ./data for issuers, puller routes and puller logs.

Software

  • Node.js >= 20 (bundled in the published image)
  • EDC Connector with IdentityHub (any release that exposes the /v1alpha/participants/, /v1alpha/credentials and optional IssuerService Admin API)
  • Docker & Docker Compose v2 (standalone install)
  • Kubernetes cluster with Helm 3 (Containerisation install)
  • Optional: DS2 IDM (for the IDM signing endpoint and the Requestable Credentials flow)

DS2 Installation

Install via the DS2 Marketplace — the module is published as credentialmanager in the Identity category. From the Containerisation UI of your DS2 environment:

  1. Refresh the Containerisation DS2 repository.
  2. Navigate to the Available modules section.
  3. Click on the credentialmanager module.
  4. Click on Install.
  5. Click on Next-Apps configurations and configure the required environment variables (listed below).
  6. Click on Install Module.
  7. Go to Installed Modules and wait until the credentialmanager module reports Running.
  8. Click Open Module (or open it via Dash Button) and the dashboard UI will load on the single-page UI path exposed by the container.

The Image used by the chart is ghcr.io/vicanfon/ds2-ice/credential-manager and the default chart version is 1.0.0 (image tag configurable in credentialmanager.image.tag).

Standalone Installation

Summary of installation steps

The standalone install runs the module as a single Docker container launched via docker compose up. Steps cover cloning the repository, populating the .env, and starting the service that mounts its own data directory.

Detailed steps

Clone the code

git clone https://github.com/ds2-eu/credentialmanager.git
cd credentialmanager

Copy the environment template and edit it for your connector environment:

cp .env.example .env
# edit .env to set IDENTITYHUB_*, ISSUER_*, REPOSITORY_*, IDM_* and PORT as needed

The compose file docker-compose.yml exposes port 3001 and persists ./data (issuers, puller routes, puller logs) to the host. Bring the service up:

docker compose up -d

Once running:

  • The dashboard is reachable at http://localhost:3001/.
  • The JSON config endpoint is at http://localhost:3001/api/config.
  • Logs are in ./data/pending-sync.log (puller runs).
  • Routes are persisted in ./data/puller-config.json; issuers per connector DID live in ./data/issuers.json.

To stop the service:

docker compose down

How To Use

The Credential Manager can be used by connector administrators and by credentials consumer/producer operators working with that connector. Each UI map below describes the dashboard pane they will use most.

Connector administrators

  • Inventory & wallet (Accepted Credentials pane):
    • Browse Verifiable Credentials that already live in the connector's IdentityHub.
    • Inspect a single credential's FULL JSON, issuer, holder, claims, state, issuance/expiration dates and policy.
    • Filter by credential type or claim value.
  • Expiration Monitor pane:
    • Audit at-a-glance which credentials are expired, expiring within 7 days, or valid for more than 30 days.
    • Sort by expiration, issuance date or credential type.
  • Issuer management (From Issuer → Credential Definition / Request From Issuer):
    • Add one or more issuer entries for the current connector DID; choose a default.
    • Create or edit credential schemas, push them up to the IssuerService (with matching Passthrough attestations), then request a credential by filling the claim values. The dashboard polls the request to completion and registers the finished credential into the global DS2 Repository.
  • Self-Sign pane:
    • Pick a $id:key self-signed flow for low-risk testing (IssuerService unreachable) or a fully custom-context IDM custom-signing flow for offline agreement-style credentials.

Credential Delivery operators

  • Downloadable Credentials pane:
    • Toggle between the Global (PENDING) repository and the Local (DELIVERED) repository mirror.
    • Click an entry to inspect the underlying credential data and accept it: the credential is stored in the IdentityHub and the source repository object is marked DELIVERED.
    • Open the agreement policy to review the policy text from the local repository before accepting.
  • Requestable Credentials (optional, enabled by REQUESTABLE_CREDENTIALS_ENABLED) pane:
    • Request dataspace peer credentials (DS2 Membership, AgreementCredential, AcquisitionCredential) using the same flows surfaced by the IDM portal. Object IDs are auto-resolved upstream.

Puller operators

  • Puller pane:
    • View every configured route, its action, its filters (objectType, objectTypeContains, name, status, metadata) and its schedule (fixed time of day or interval in minutes, with an optional run-on-startup flag).
    • Use Route Editor to create or update any route.
    • Hit Run Now to trigger all enabled routes out-of-schedule, or per-route Run to debug a single route.
    • Inspect the rolling Recent Runs log.

API consumers (REST)

All endpoints below are served on the same port the dashboard listens on (PORT, which is 3000 by default in code but set to 3001 in the shipped .env, docker-compose.yml and Docker image). The most useful entry points:

  • GET /api/config — runtime visibility of addresses, the connector participant ID and the puller schedule.
  • GET|POST|PUT|DELETE /api/issuers[/:issuerId] — multi-tenant issuer CRUD scoped to the caller's connector DID.
  • GET|POST /api/participants[/register-current] and related routes — IdentityHub participant lifecycle.
  • GET /api/dids/current — current DID document + state.
  • GET|POST|DELETE /api/credentials[/...|/:id] — wallet inspection, DCP request, revoke, IDM sign, IDM custom sign, self-issue.
  • GET|POST|PUT|DELETE /api/credential-types[/:id] — IssuerService credential definition CRUD.
  • GET|POST|PUT|DELETE /api/puller/routes[/:id], POST /api/puller/run, GET /api/puller/logs, GET /api/puller/config — puller administration.
  • GET /api/agreements[/:id|/:id/accept], POST /api/agreements/consumer/store-deliver — downloadable credentials.
  • GET /api/credentials/:id/policy — local repository policy lookup.
  • GET /api/repository/policy/:id — direct repository policy fetch.
  • GET /api/idm/* and POST /api/idm/* — proxy endpoints for the IDM portal APIs (organizations, dataspaces, collaborations, credentials, generation allowlist).

All endpoints honour the connector participant ID resolved from IDENTITYHUB_PARTICIPANT_CONTEXT_ID, the optional x-participant-context-id header, the optional x-organization-id / x-organization-url header or the JWT-derived participantContextId from the dashboard's keycloak cookie. When x-organization-url is set and IDENTITYHUB_BASE_URL is not, the URL is auto-derived for that request.

Other Information

For non-core modules no extra information is required. The Credential Manager is a connector-edge companion that does not interact with Kafka, MongoDB or MinIO directly; the only locally persisted state is the JSON-file-based puller/issuer/last-log storage under ./data.

API Reference

The Credential Manager does not currently ship a machine-readable OpenAPI/Swagger specification. The authoritative REST surface is the endpoint list under the API consumers (REST) section above, and the running service exposes an interactive API entry point through the dashboard. For driving the flows programmatically, use the endpoints listed above directly (e.g. with curl or Postman) against the host and port the service listens on.

Video

Add here the link to the Credential Manager walk-through video: Add here video link: https://
